Product overview
Select by pipe data, operating duty and installation condition
A pipe saddle clamp creates a branch outlet on an existing water main for a service connection, valve, meter or instrument point. The range includes ductile-iron-pipe and HDPE-pipe saddle configurations plus universal and flanged outlet designs.
For municipal water and irrigation networks, a waterworks tapping saddle must match the pipe material, exact OD, outlet size, thread or flange standard, pressure and tapping procedure. Plastic pipes can also require product-specific reinforcement or support.
The saddle body and gasket must sit evenly on a cleaned pipe surface. Outlet orientation, bolt tightening sequence and drilling procedure are installation-critical. The utility or contractor remains responsible for the tapping method and live-line safety plan.
Available configurations
Representative pipe saddle clamp models
These photographs come from the current Conflex product catalogue. Dimensions and availability are confirmed against each enquiry.

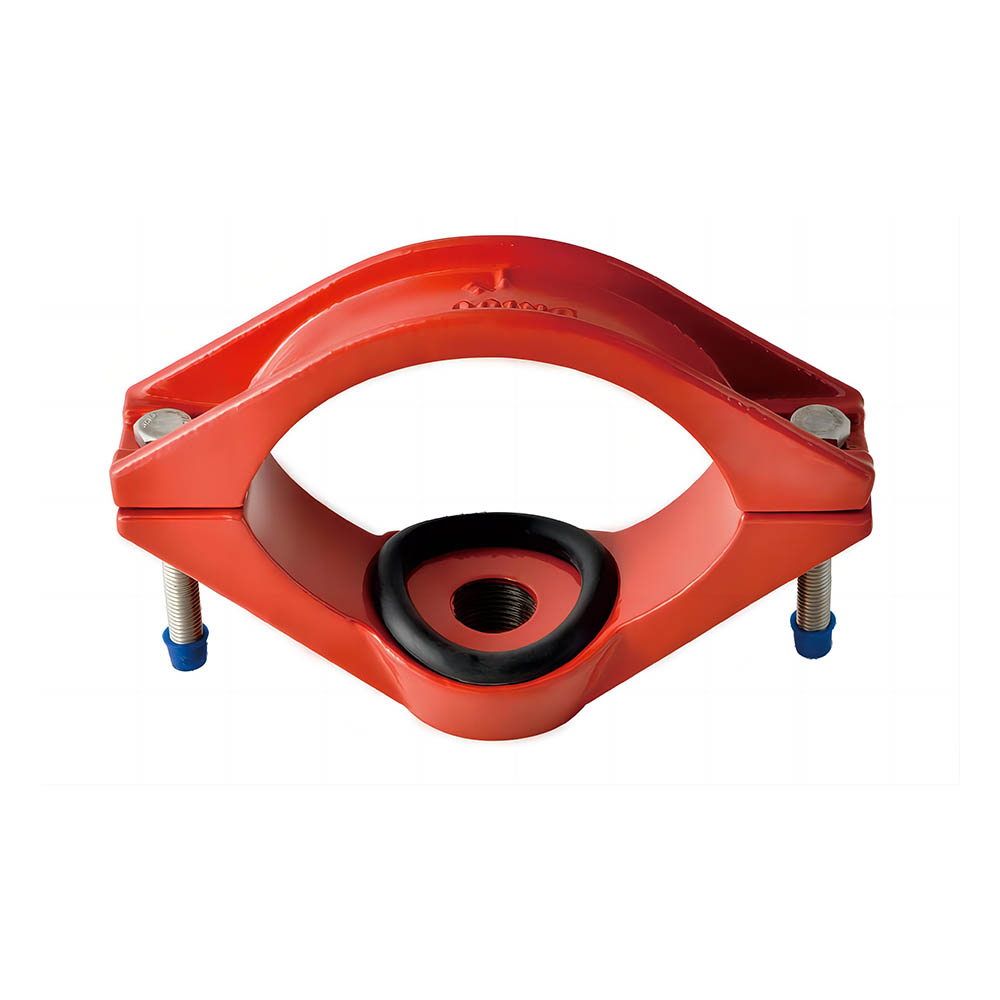

Saddle Clamp for DI Pipe
Pipe-specific branch saddle documented for ductile iron pipe.
View product details

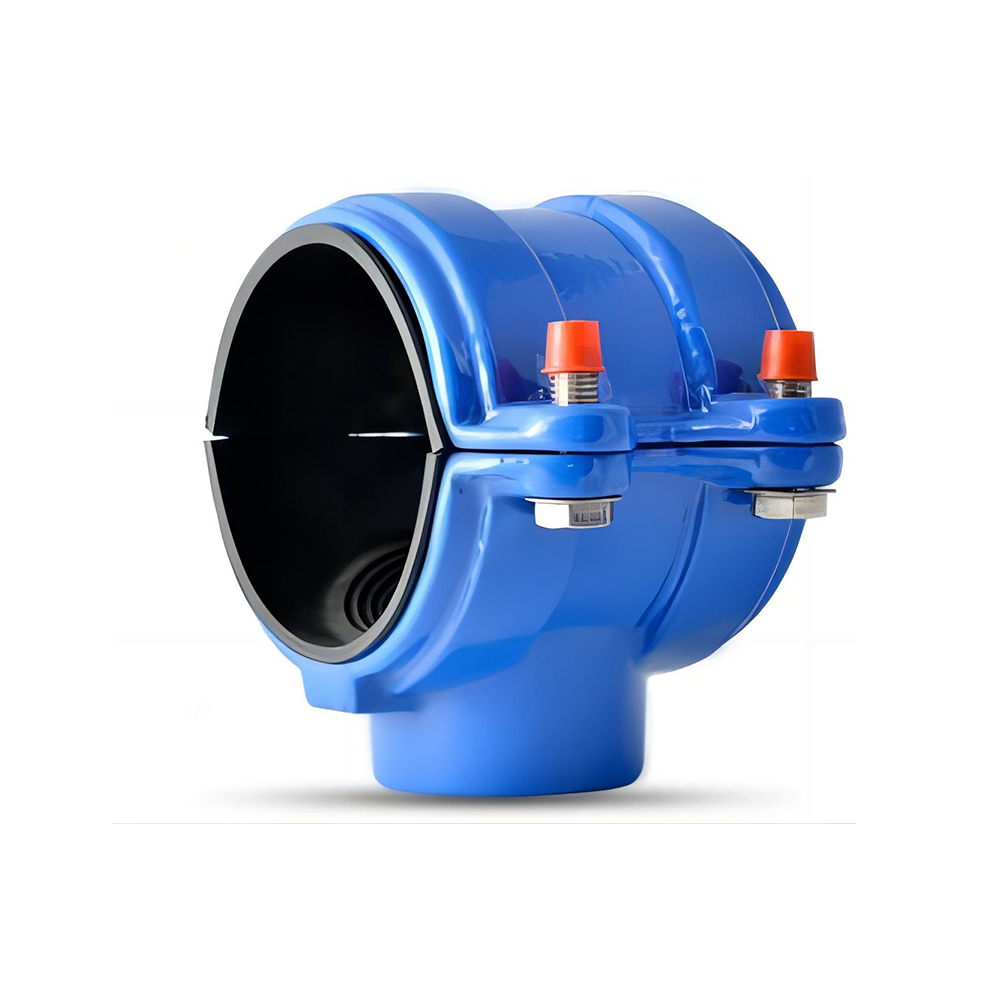

Saddle Clamp for HDPE Pipe
HDPE configuration requiring OD and pipe-wall review.
View product details
Universal Saddle Clamp
Wide-range saddle for compatible water-pipe outside diameters.
View product details

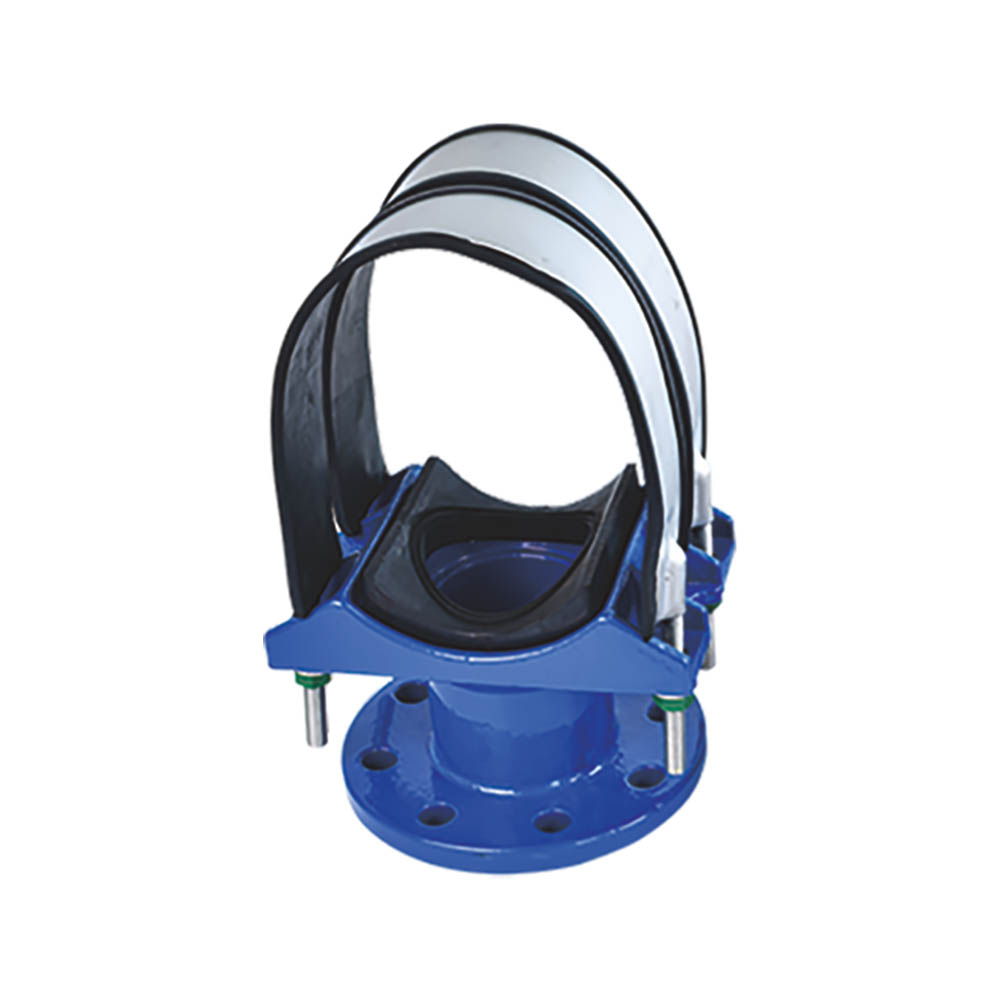

Universal Saddle Flange Tee
Flanged branch outlet for project-specific connection requirements.
View product detailsTechnical reference
Typical documented range
Values below summarize referenced catalogue models, not a blanket rating for every configuration. The approved drawing and quotation govern the supplied product.
- Reference size coverage
- DI saddle DN60–DN300; HDPE saddle OD25–OD315; universal DN50–DN700
- Reference pressure classes
- PN10 and PN16 on documented universal configurations
- Body material
- Ductile iron GGG50 on documented saddle products
- Gasket options
- EPDM, SBR or NBR depending on medium and selected saddle
- Fastener options
- Stainless or coated carbon-steel options by product and order
- Outlet
- Threaded or flanged configurations; specify size and standard
Typical applications
- Service connections
- Branch lines
- Instrumentation points
- Irrigation and water distribution
Pipe and connection context
- Ductile iron pipe
- Steel pipe
- PVC pipe
- PE pipe with a suitable saddle design
Compatibility depends on the selected model, exact OD, pipe condition and confirmed operating duty.
Installation summary
Five checks before commissioning
This summary does not replace the approved model drawing, torque table, project method statement or safety procedure.
Read the installation guide- 1Verify the pipe material, actual OD, selected saddle, outlet size and pressure rating before drilling.
- 2Clean the full gasket contact area and use only the specified lubricant where the pipe surface requires it.
- 3Separate or loosen the saddle halves, position the outlet accurately and keep the gasket parallel to the pipe surface.
- 4Align both saddle halves and tighten bolts evenly in alternating increments to the product-specific torque.
- 5Complete tapping only under the utility’s approved procedure, then inspect the outlet and gasket area for leakage.
RFQ checklist
Send these six inputs
If a value is unknown, send a drawing or site photo and mark it for review.
- 1Main pipe material and outside diameter
- 2Outlet size and connection type
- 3Working pressure
- 4Tapping method
- 5Service medium
- 6Gasket and coating requirements
Frequently asked questions
Saddle Clamps FAQ
What information is needed for a saddle clamp quote?
Provide pipe material, actual OD, outlet size and type, working pressure, tapping method, medium and quantity.
Can a saddle clamp be used on HDPE or PVC pipe?
Yes, selected pipe-specific or universal saddles cover compatible plastic pipes. Pipe SDR, support and tightening requirements must be reviewed.
What is the difference between a threaded and flanged saddle outlet?
Threaded outlets suit compatible smaller service connections; flanged outlets provide a bolted interface for larger branches or flanged equipment.
Can the branch be installed without stopping the main?
Live tapping depends on the saddle, valve, tapping machine, pipe condition and the operator’s approved safety procedure. It must not be assumed from the saddle alone.
Need a dimensional table or model review?
Include the size range, standard, quantity and destination in your enquiry.
